Haptic interface with perfect transparency
A single degree-of-freedom high-fidelity haptic device
- Haptic feedback
- Single DOF
- Haptic interface
Manual assembly of micro-parts requires high dexterity. However, direct interaction with the micro-scale is presently typically performed while viewing the task through a microscope. Therefore, to perform their work, workers rely entirely on vision through optical enlargement. This results in work arduousness, repeated stress injury disorders, attentional stress leading to blurred vision, cardiac conditions, anxiety, and even depression.
There exists no commercial haptic device that achieves the required transparency and stability for efficient micro-manipulation. They lack advanced human-machine interfaces able to provide haptic feedback of the micro-scale forces that arise during the assembly process. Indeed, the mechanical structure of current haptic devices comes with large handle inertia and/or limited dynamic range, resulting in a low level of transparency blurring and masking the perception of small or highly dynamic phenomena that are so important to the human somatosensory system.
This novel solution is a single degree-of-freedom high-fidelity haptic device. The invention is based on the combination of two different actuators : one intended to supply the main couple with permanent regime and the second only supplying transitory couples. The main couple depends on the speed of the main engine. Because the latter is speed-compensated, its inertia is not transmitted to the load. Furthermore, the precision is insured by the auxiliary engine which is highly dynamic thanks to its low moment of inertia. The main advantage of this architecture is to be able to supply couples in a very wide range (from 3 to 4 orders of magnitude), with a very fine precision that surpasses the capacities of all the known electromechanic actuators.
Classic interfaces only give haptic feedback on two orders of magnitude, between 0.1N and some Newtons. This novel interface allows a haptic feedback 10 times superior to all other interfaces (3 orders of magnitude instead of 2). So, it applies perfectly to the felt of microscopic effort which dynamics and variability are very important. Only this interface can allow to interact in a transparency way with the microworld today.

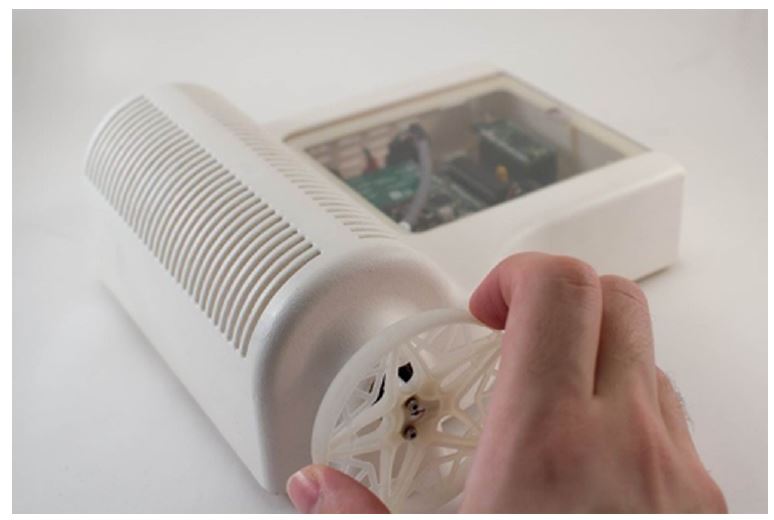

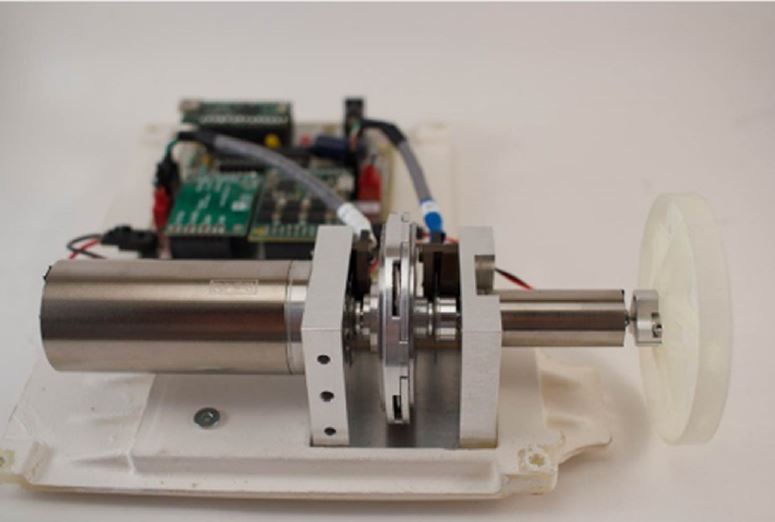

A functional prototype has been developed.
- Micro manipulation & assembly for watch making
- Biology (cell handling, micro injection)
- Excellent dynamic of feedback (Latency: 0,5 ms)
- Very low friction force (<5mN)
- High fidelity
- Felt of forces about mN
- Felt inertia of few grams (perfect transparency)
- Priority patent application filed in 2009 (CA, US, EU, JP)
ENGINEERING | Number ref.: #MA00016
Micro/nano-manipulation, Haptic feedback, Single DOF, Microworld, Haptic interface, Haptics
